Stratovac builds oil-free, leak-tight regenerative boosters and blowers for high pressure, corrosive gases, explosive atmospheres and non-stop duty. Send your operating point and talk to the engineers who design the machine.

Send your operating point Browse products

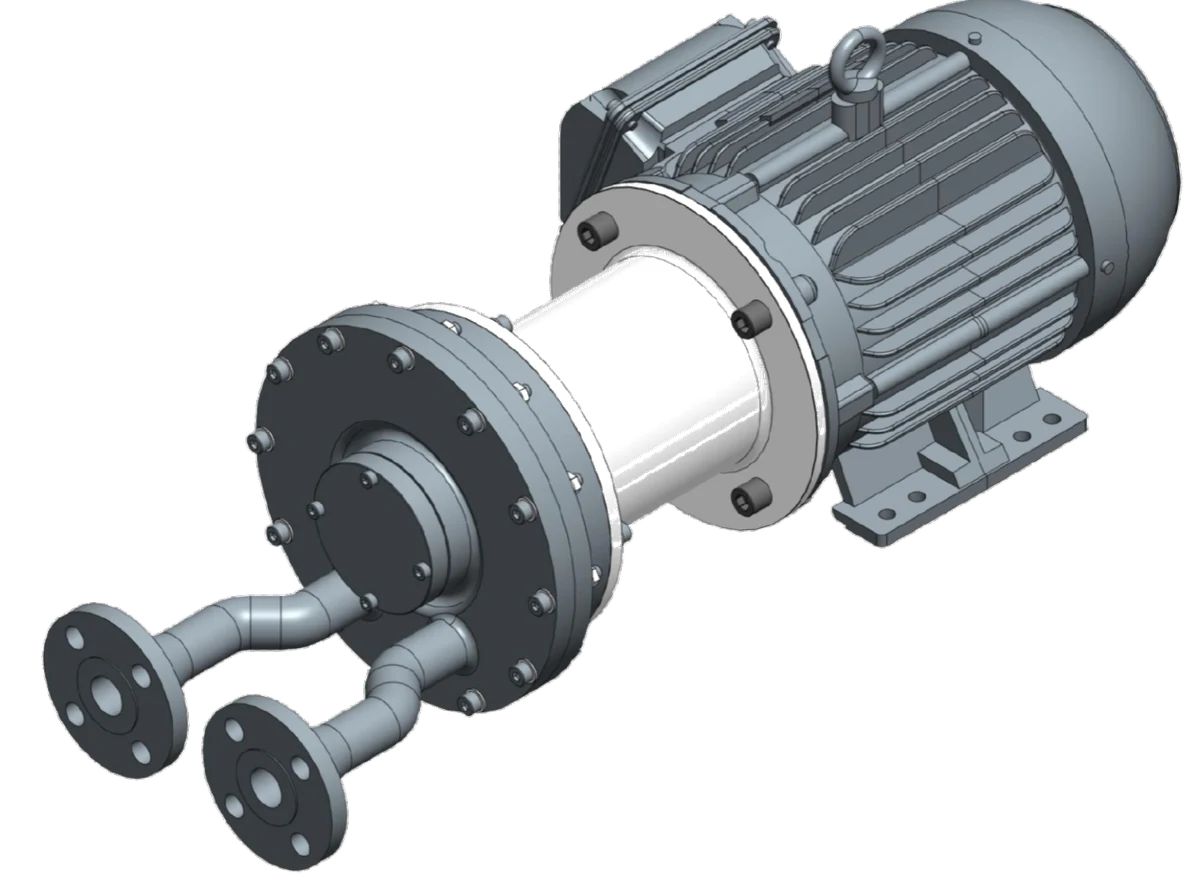

High-pressure natural gas booster, 3D rendering

Explosion-proof motor available

Magnetic coupling, no shaft seal

Flanged inlet and outlet

15 000 RPMHigh-speed boosters, compact enough to mount on a robot
0 oilNothing but your gas in the gas path
24/7Built for continuous duty
Class I Div. 1/2Explosion-proof motors available

Product lines

Standard models where they fit and custom engineering where they don’t. All lines are oil-free regenerative machines built for continuous duty.

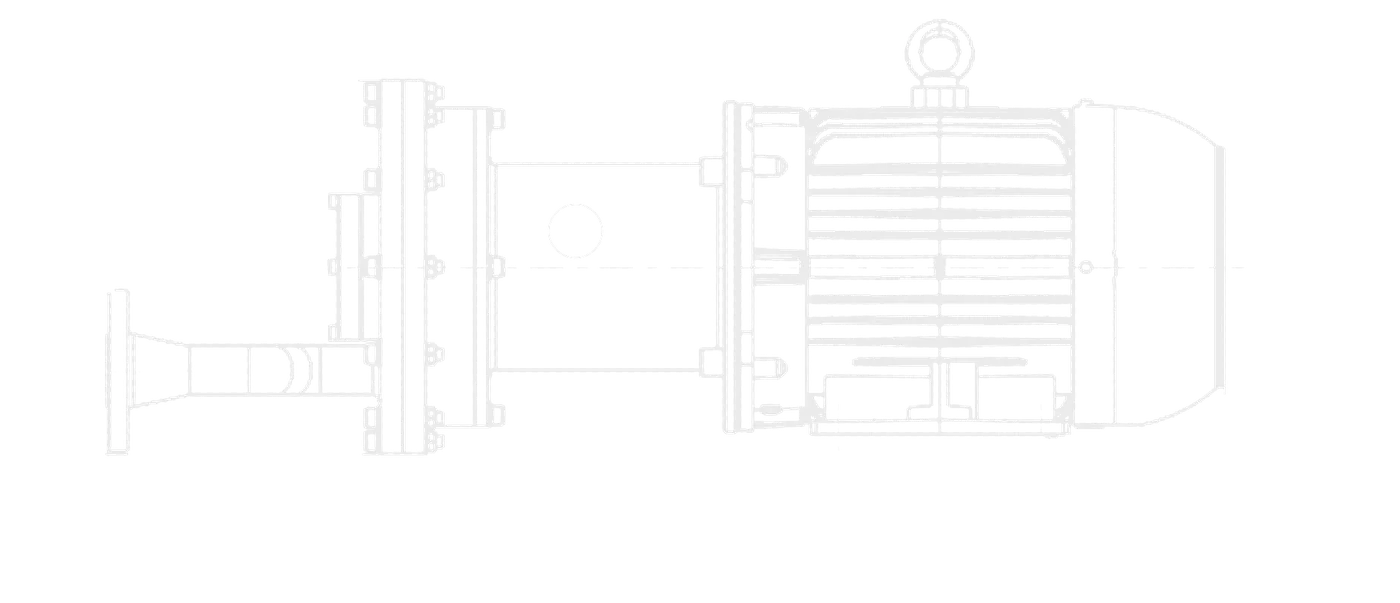

High-pressure natural gas booster

A magnetically coupled side-channel booster with a stainless steel casing. Identical units stack in series to reach the discharge pressure the job needs.

Boost from a 600 psig (41.4 bar) inlet: 1 stage: 700 psig (48.3 bar) · 2 stages: 810 psig (55.8 bar) · 3 stages: 935 psig (64.5 bar)
Sealing: Magnetic coupling, no shaft seal on the gas side
Casing: Stainless steel, resists H₂S and sour gas
Gas path: 100% oil-free. One impeller and 2 bearings per stage
Motor: Class I Div. 1/2 and Class II Div. 2, Groups C, D, F and G available
Duty: Continuous, 24/7

Natural gas booster datasheet Case study

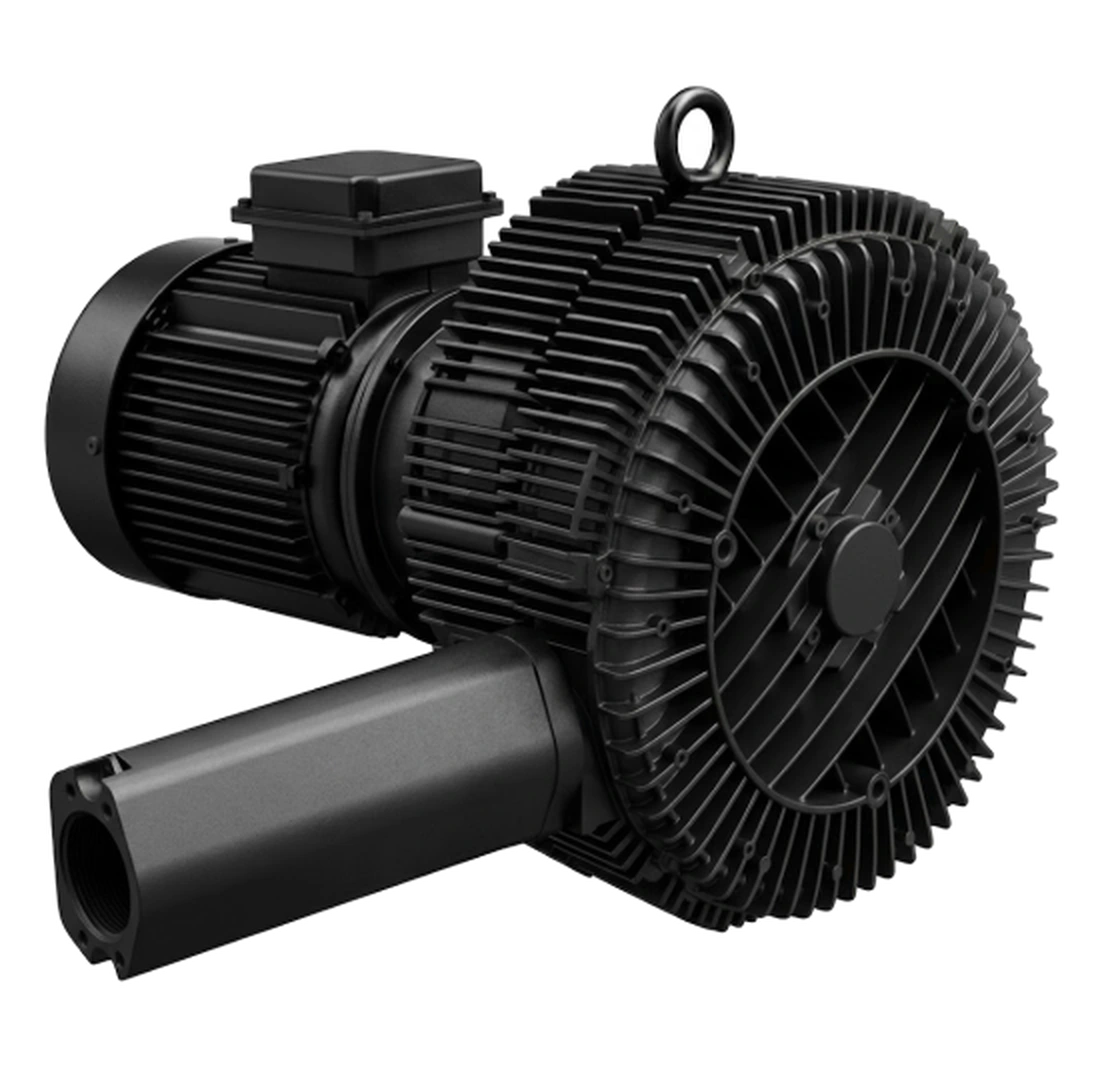

Regenerative blower for biogas, three-quarter view — Biogas blower

Biogas regenerative blower

A gearless, oil-free blower built to move wet, corrosive biogas around the clock. No gearbox, no belts and no shaft seals.

Flow: 5 to 2,000 CFM (8.5 to 3,400 m³/h)
Pressure: −8.35 psi (−0.58 bar) vacuum to +15 psig (1.03 bar)
Drive: Direct drive, no gearbox, belts or pulleys. 4 bearings, against 6 on a positive-displacement blower
Corrosion: Nickel, Cerakote or anodized coatings matched to the gas. Aluminum impeller and housing reduce spark risk
Motor: Class 1 Div. 1 Groups C and D, Class 2 Div. 2 Groups F and G. cULus listed. VFD-ready
Flow quality: Pulsation-free and quieter than a positive-displacement blower

Biogas blower datasheet

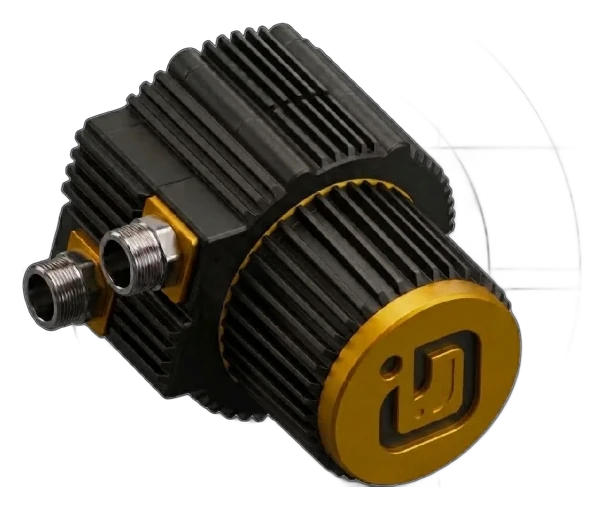

Electric high-pressure air booster

A high-speed regenerative booster that doubles the pressure of compressed air or nitrogen on electric power alone. It replaces pneumatic and piston boosters without drawing compressed air or adding oil.

Pressure ratio: 2:1, up to 400 psig (27.6 bar). Units can run in series
Higher pressure: We can build blowers that run at higher pressures when the job needs it
Flow: 35 SCFM (59 m³/h) continuous
Motor: 2.6 kW (3.5 hp), 120/230 V single-phase or 230 V three-phase
Speed: Up to 15,000 RPM
Ports: 1.25 in. MNPT
Media: Air, nitrogen and other gases

Electric booster datasheet Compared with piston Compared with pneumatic

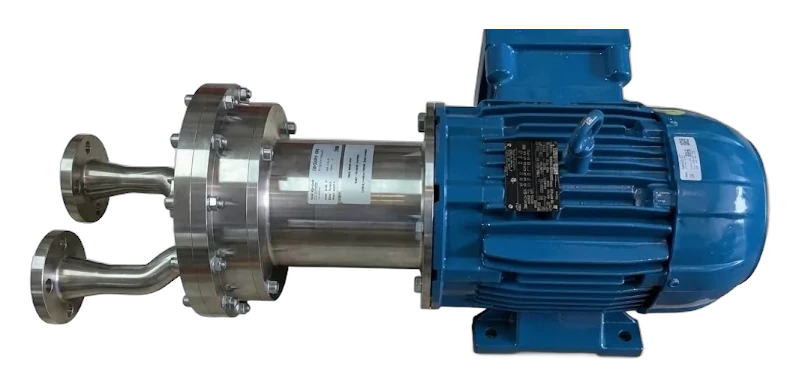

Delivered pressurized regenerative blower with magnetic drive — Delivered unit, reference project

Custom pressurized regenerative blowers

For gas circuits that run at line pressure. The whole casing is engineered and tested as a pressure part, and a magnetic drive replaces the shaft seal.

Reference project: Gas recirculation on a natural gas dryer: 20 SCFM (34 m³/h), 174 psig (12 bar) inlet, about 181 psig (12.5 bar) outlet, 3 hp
Casing pressure: Up to 80 bar (1,160 psi). The reference unit was hydrostatically tested at 16 bar (232 psi)
Casing material: Aluminum or stainless steel, depending on the pressure. Other materials available on request
Sealing: Hermetic magnetic coupling, no shaft seal
Connections: ANSI flanges, certified motor
Field record: About 18 months in service, additional units requested
Current platform: Coupling rated 63 bar (914 psi), nickel-coated billet aluminum housing, 316 stainless shaft, hybrid ceramic bearings

Case study

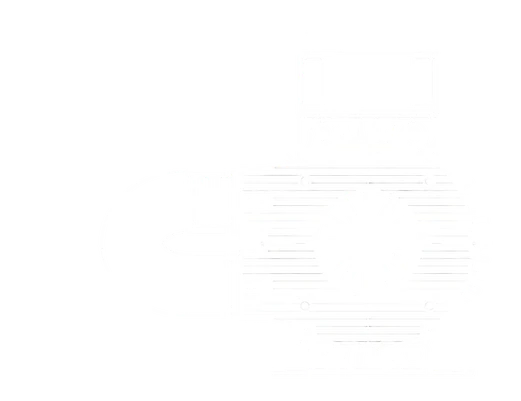

Technical drawing of the IDMB0092-2SA281 high-speed blower — IDMB0092-2SA281 · technical drawing

High-speed regenerative blower

A compact, lightweight blower for equipment where space and weight count. The same unit works as a vacuum pump or a compressor over its whole performance curve.

Flow: Up to 92 m³/h (54 CFM)
Vacuum and pressure: Up to −435 mbar (−0.435 bar, −6.3 psi) vacuum or 800 mbar (0.8 bar, 11.6 psi) pressure
Motor: 2.6 kW, 48 VDC or 120–240 VAC, high-speed three-phase permanent magnet
Speed: Up to 15,000 rpm
Weight and noise: 6.8 kg, 60 to 70 dB
Duty: Continuous operation across the full curve, as vacuum pump or compressor

High-speed blower datasheet

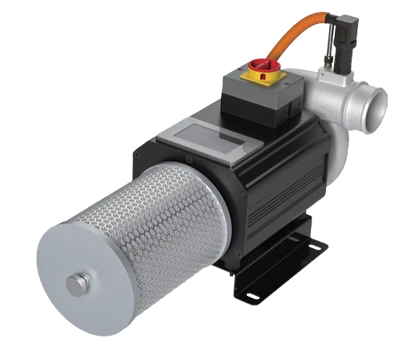

High-speed turbo blower

A compact, oil-free turbo blower with a patented high-speed motor and a built-in variable frequency drive. Speed is set from the screen or over MODBUS, and the unit needs no routine maintenance.

Flow: Up to 13 m³/min (780 m³/h, 459 CFM)
Pressure: Up to about 50 kPa (0.5 bar, 7.3 psi)
Motor: 3.5 to 7.5 kW, patented high-speed motor with integrated VFD, up to 80,000 rpm
Power supply: Single or three-phase, 50 or 60 Hz
Control: Speed adjustable from the HMI or by PLC over MODBUS
Build: 18,000 hours maintenance free, class H insulation, IP65
Weight and noise: About 11 to 15 kg, 71 to 74 dB(A)
Models: STRT-A15-XXXX430, 440, 7.530 and 7.540

Turbo blower datasheet

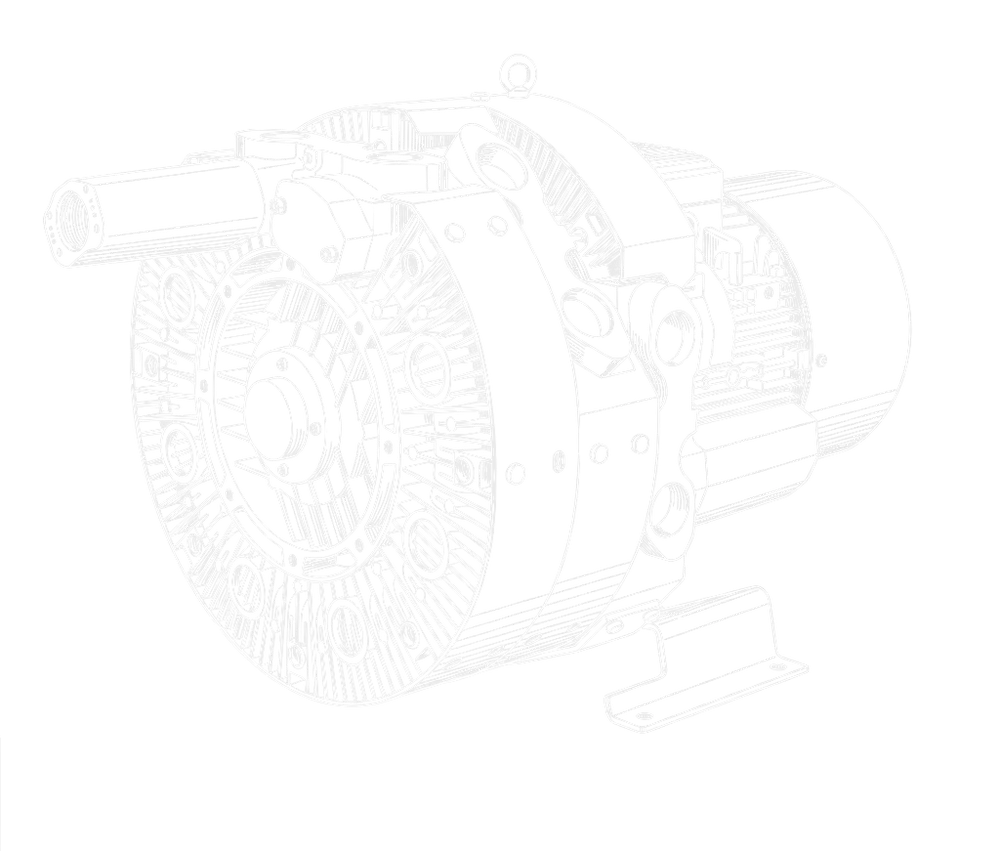

Technical drawing of a side-channel regenerative blower — IDSC series · technical drawing

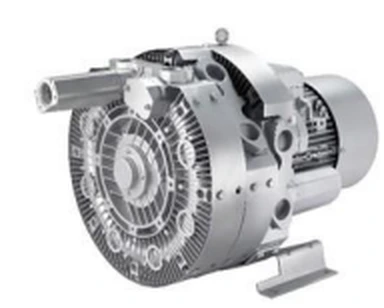

Standard regenerative blowers

Side-channel blowers for vacuum and pressure, from small single-stage units to three-stage models. Motors come in 50 and 60 Hz, with explosion-proof, CSA and ULc certified options.

Range: About 130 models in two series, IDSC and IDSC1
Flow: About 50 to 3,900 m³/h (29 to 2,295 CFM)
Pressure and vacuum: Up to about 1 bar (14.5 psi) pressure or −0.7 bar (−10.1 psi) vacuum
Stages: Single-, two- and three-stage versions at 50 and 60 Hz
Build: Oil-free. Example datasheet (IDSC0530-2SB152-5): IP55, insulation class F, maintenance free, frequency converter operation allowed
Options: Explosion-proof motors, CSA and ULc certified, on request
Sound: 48 to 89 dB(A)

Standard blower catalog Double-stage blower datasheet

Fewer parts to leak, wear or fail

Most gas problems come from shaft seals, oil, gears and corrosion. Stratovac machines are designed to take each of them out of the gas path.

How the magnetic drive seals the gas

Torque crosses a solid wall through magnets, so the motor shaft never enters the gas chamber.

1The motor turns the outer magnets, outside the gas.
2Their magnetic field crosses the sealed wall, with no hole for a shaft.
3The inner magnets turn the shaft and both impellers inside the gas.

The electric booster, whole machine

1Motor
1Shaft
2Impellers
2Bearings

Magnetic coupling
No shaft seal means no leak path and no seal to replace.
Oil-free gas path
No oil in the machine, so none reaches your gas, your process or the equipment downstream.
Corrosion resistance
Stainless steel or nickel-coated housings stand up to H₂S, sulfuric acid and caustic cleaning products. Cerakote and anodized finishes are available.
Compact high speed
Up to 15,000 RPM in a footprint that fits on a robot, a gripper or a crowded skid.
Staged pressure
Identical units run in series, so you buy the pressure you need instead of an oversized single machine.
Hazardous-area motors
Class I Div. 1/2 and Class II Div. 2 motors let the machine install straight into classified areas.

Stack units to build the pressure

Natural gas booster, 600 psig (41.4 bar) inlet. Each added stage raises the discharge pressure.

1 stage700 psig · 48.3 bar (+100 psi · +6.9 bar)

2 stages810 psig · 55.8 bar (+210 psi · +14.5 bar)

3 stages935 psig · 64.5 bar (+335 psi · +23.1 bar)

psig · bar

0
0200
14400
28600
41800
551000
69

Inlet pressure, 600 psig (41.4 bar)Pressure added by the stages

The electric booster against the alternatives

Criterion	Electric booster	Pneumatic 2:1	Piston, about 3 hp
Uses compressed air	No	Yes	No
Energy use	1×	≈ 2×	Moderate
Oil-free	Yes	Varies	Oil risk
Leak-tight	Yes	No	No
Maintenance	Minimal	Regular	Frequent
Size	Compact	Medium	Bulky
Maximum outlet pressure	400 psig (27.6 bar)	230 to 300 psi (15.9 to 20.7 bar)	About 360 psi (24.8 bar), typical 3 hp unit

Source: the electric booster datasheet and comparison sheets. Energy and wear comparisons are estimates against typical units, and results depend on your site.

Where Stratovac machines run

From biogas skids to ventilators and nuclear plants, the common thread is a gas that standard blowers handle badly.

Biogas and renewable natural gas

Blowers and boosters that move wet, flammable, H₂S-laden gas through upgrading and conditioning systems, and boost it before pipeline injection.

Natural gas treatment

Gas recirculation and regeneration in dryers and PSA units, oxygen removal systems, and fuel-gas boosting for turbine skids.

Hydrogen and fuel cells

Turbo blowers for cathode air or oxygen supply and boosters for hydrogen recirculation, supplied to fuel cell manufacturers.

Collaborative robotics

Two-stage high-speed boosters small enough to mount on the robot or the gripper instead of a central station.

Medical and respiratory

Boosters cleaned and greased to meet breathable-air ISO limits for very low VOC. Used in a mechanical ventilator program built in Canada during COVID-19.

Dental equipment

Light, high-flow boosters for portable dental vacuum, with a nickel coating against caustic cleaning products.

Nuclear and radioactive gas

Custom boosters that circulate radioactive gas: radiation-resistant greases, depleted uranium shielding and a low-speed design for bearing life. Units delivered several years ago are still in operation.

Aquaculture

Air and oxygen injection for recirculating aquaculture systems and live-holding tanks. Oil-free for the safety of live species, built for 24/7 duty.

Compressed air and nitrogen

Electric boosters raise line pressure at the point of use without drawing compressed air from the network. A nitrogen booster for fiber laser cutting is in development.

Vacuum pumps for maple producers

Oil-lubricated rotary vane vacuum pumps for your sugar bush, ordered straight from Stratovac. Built in South Korea, with the same quality as the AirTech Vacuum pumps, the pumps CDL has long supplied to maple producers, at very competitive prices and with no middleman supplier between you and us.

All maple pump details

Direct from Stratovac
You deal with us from the quote to the delivery. No other supplier in the middle.
The same quality as AirTech Vacuum
Oil-lubricated rotary vane pumps like the ones CDL sells, with the same quality as AirTech Vacuum.
Made in South Korea
Built in South Korea. The whole range is CE marked.
Very competitive prices
Send us the pump you use today and we quote the equivalent STROV model.

Choose your pump

18 models, from 12 to 780 m³/h at 60 Hz (about 7 to 460 cfm). Each one has an English and a French datasheet with specifications, dimensions and options.

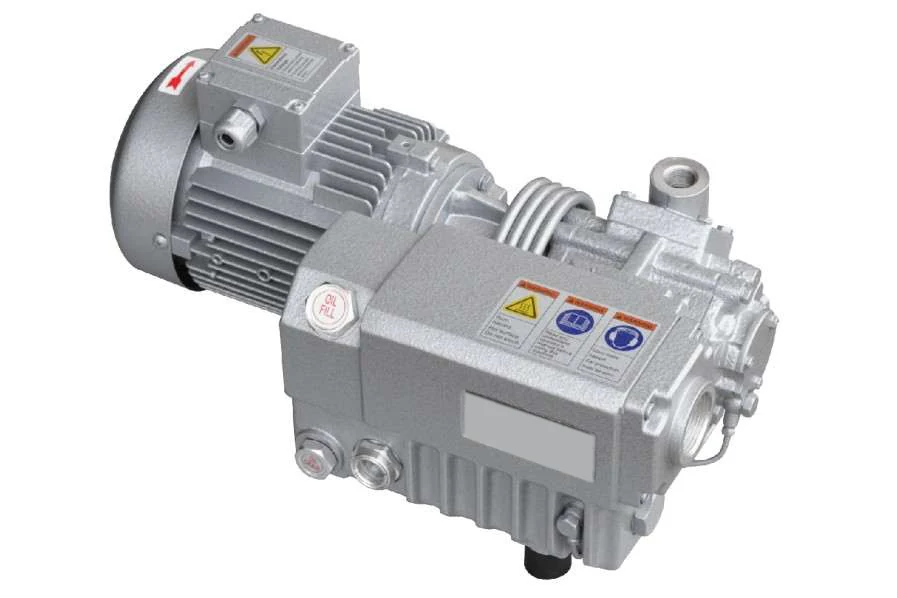

STROV-0020 oil-lubricated rotary vane vacuum pump

STROV-0020 · 0030 · 0040

Model	Pumping speed, 60 Hz	Taps it can hold	50 Hz	End vacuum	Motor, 60 Hz	Datasheet
STROV-0020	12 m³/h 7.1 cfm	about 400	10 m³/h	2 mbar (NM) 20 mbar (L)	0.4 kW	EN FR
STROV-0030	18 m³/h 11 cfm	about 650	15 m³/h	2 mbar (NM) 20 mbar (L)	0.75 kW	EN FR
STROV-0040	24 m³/h 14 cfm	about 850	20 m³/h	2 mbar (NM) 20 mbar (L)	0.9 kW	EN FR

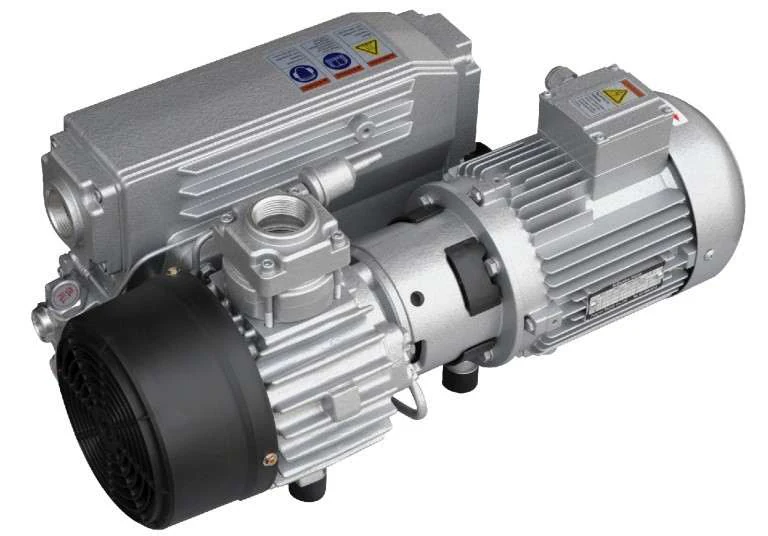

STROV-0060 oil-lubricated rotary vane vacuum pump

STROV-0060 · 0080

Model	Pumping speed, 60 Hz	Taps it can hold	50 Hz	End vacuum	Motor, 60 Hz	Datasheet
STROV-0060	36 m³/h 21 cfm	about 1,300	30 m³/h	0.1 mbar	2 hp · 1.1 kW	EN FR
STROV-0080	48 m³/h 28 cfm	about 1,700	40 m³/h	0.1 mbar	2 hp · 1.5 kW	EN FR

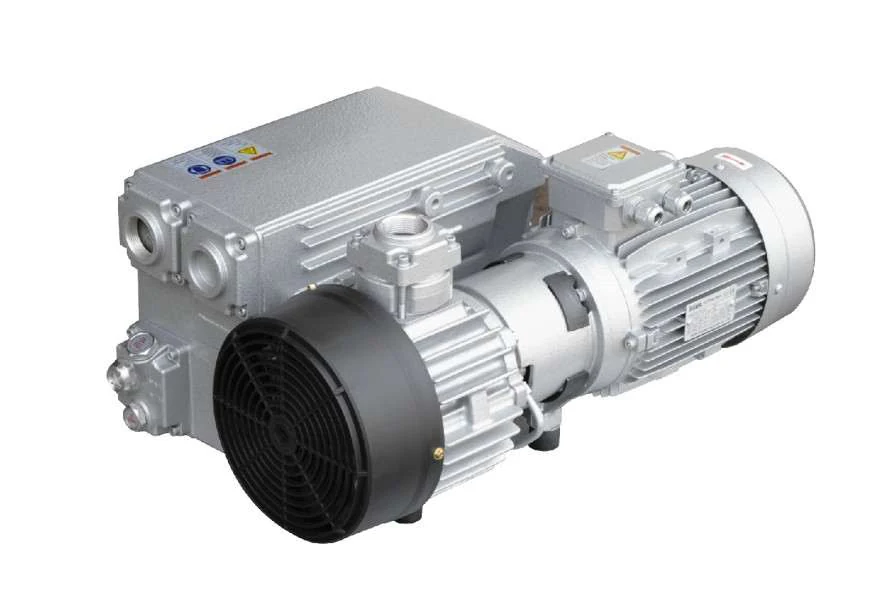

STROV-0120 oil-lubricated rotary vane vacuum pump

STROV-0120 · 0200

Model	Pumping speed, 60 Hz	Taps it can hold	50 Hz	End vacuum	Motor, 60 Hz	Datasheet
STROV-0120	75 m³/h 44 cfm	about 2,700	63 m³/h	0.1 mbar	3 hp · 2.2 kW	EN FR
STROV-0200	120 m³/h 71 cfm	about 4,400	100 m³/h	0.1 mbar	5 hp · 3 kW	EN FR

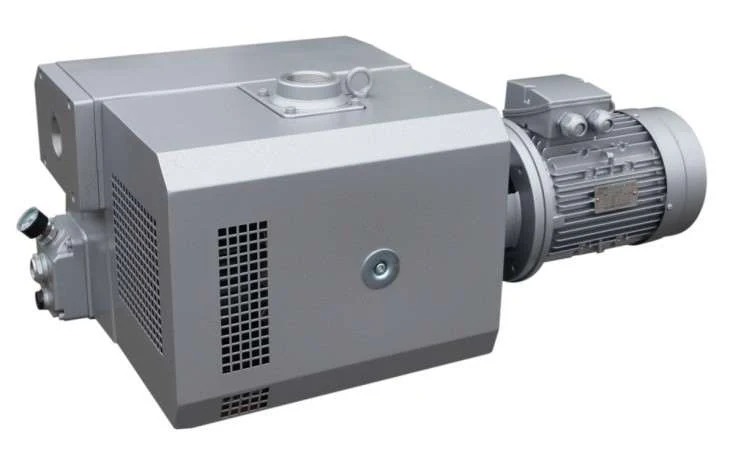

STROV-0320 oil-lubricated rotary vane vacuum pump

STROV-0320 · 0430 · 0505

Model	Pumping speed, 60 Hz	Taps it can hold	50 Hz	End vacuum	Motor, 60 Hz	Datasheet
STROV-0320	192 m³/h 113 cfm	about 7,100	160 m³/h	0.1 mbar	5 hp · 3.7 kW	EN FR
STROV-0430	258 m³/h 152 cfm	about 9,500	215 m³/h	0.1 mbar	7.5 hp · 5.5 kW	EN FR
STROV-0505	300 m³/h 177 cfm	about 11,100	250 m³/h	0.1 mbar	10 hp · 7.5 kW	EN FR

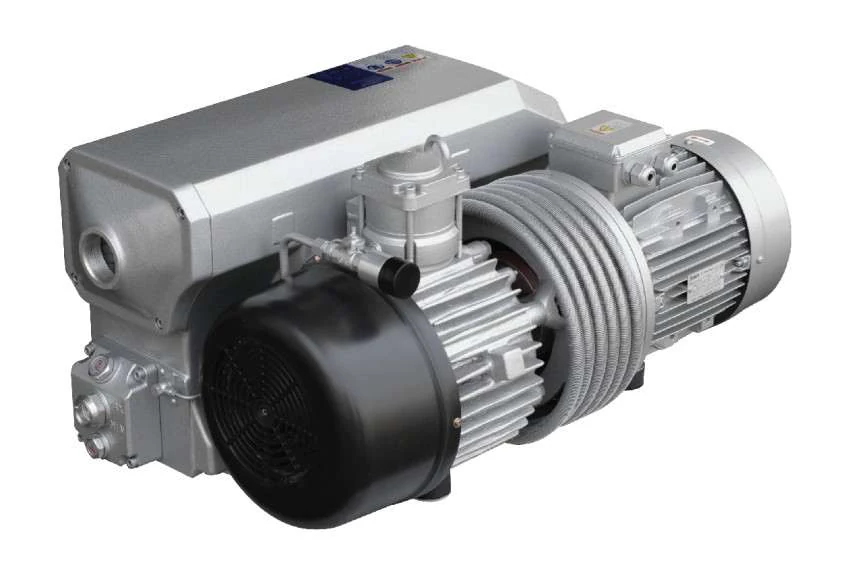

STROV-0350

Model	Pumping speed, 60 Hz	Taps it can hold	50 Hz	End vacuum	Motor, 60 Hz	Datasheet
STROV-0350	210 m³/h 124 cfm	about 7,700	175 m³/h	0.1 mbar	7.5 hp · 5.5 kW	EN FR

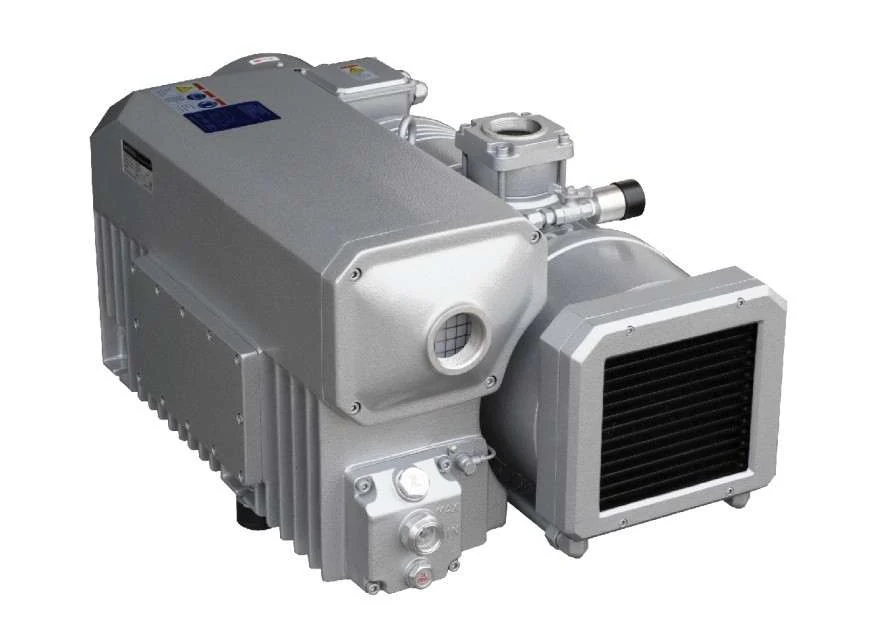

STROV-0500 oil-lubricated rotary vane vacuum pump

STROV-0500 · 0600

Model	Pumping speed, 60 Hz	Taps it can hold	50 Hz	End vacuum	Motor, 60 Hz	Datasheet
STROV-0500	300 m³/h 177 cfm	about 11,100	250 m³/h	0.1 mbar	10 hp · 7.5 kW	EN FR
STROV-0600	360 m³/h 212 cfm	about 13,300	300 m³/h	0.1 mbar	11.5 hp · 9.2 kW	EN FR

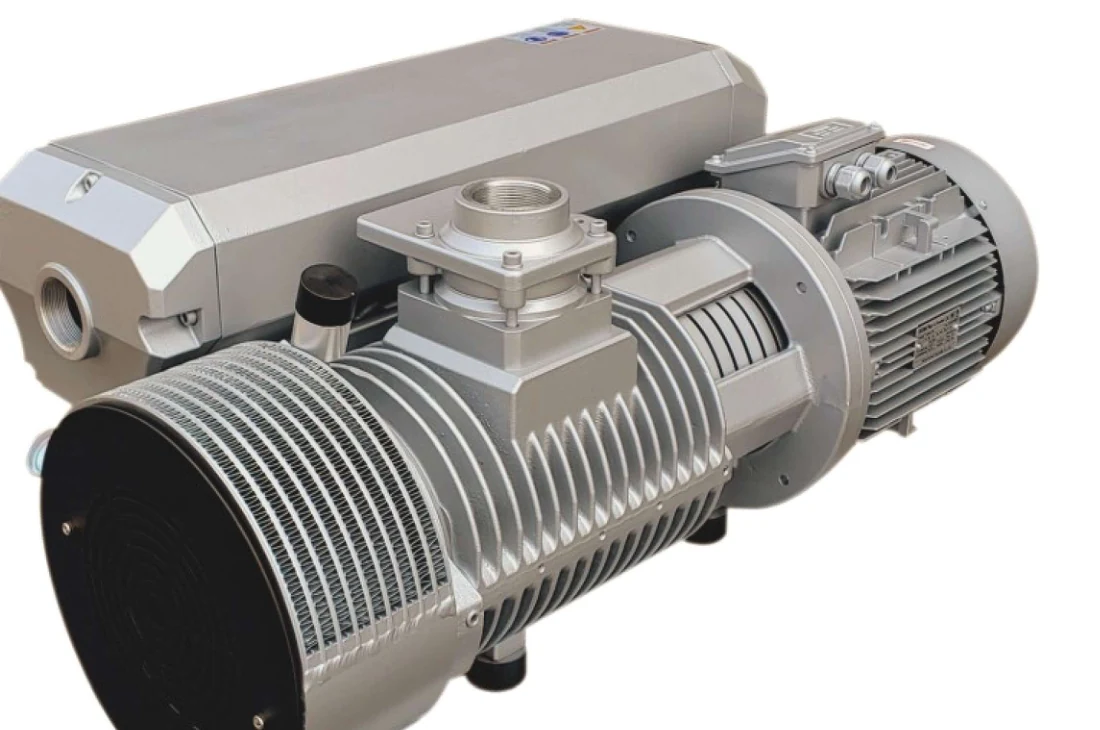

STROV-0605

Model	Pumping speed, 60 Hz	Taps it can hold	50 Hz	End vacuum	Motor, 60 Hz	Datasheet
STROV-0605	340 m³/h 200 cfm	about 12,500	280 m³/h	0.08 mbar (gas ballast closed) 0.5 mbar (open)	10 hp · 7.5 kW	EN FR

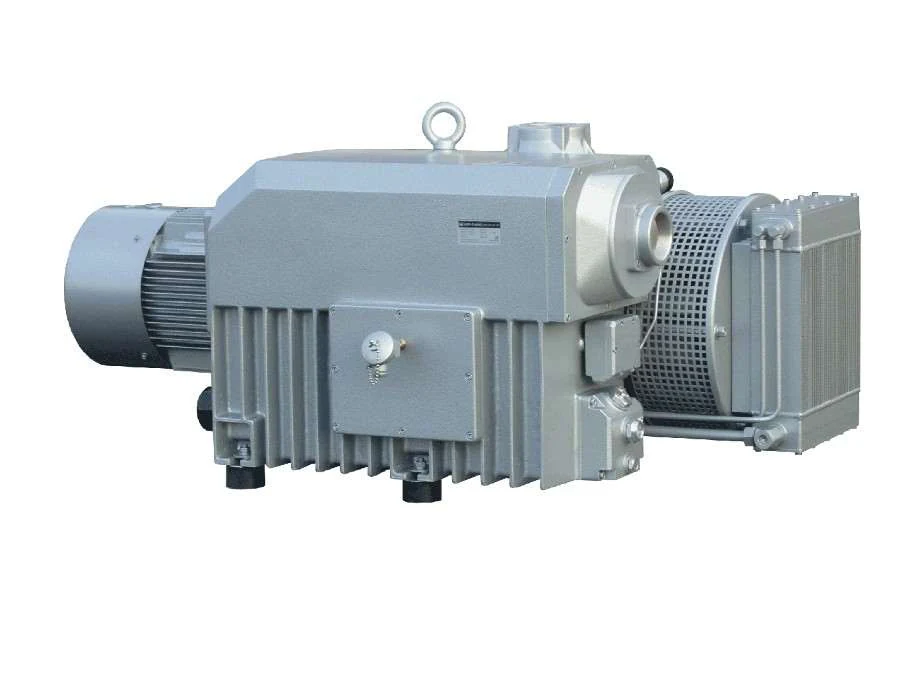

STROV-0800 oil-lubricated rotary vane vacuum pump

STROV-0800 · 1000 · 1200

Model	Pumping speed, 60 Hz	Taps it can hold	50 Hz	End vacuum	Motor, 60 Hz	Datasheet
STROV-0800	505 m³/h 297 cfm	about 18,600	420 m³/h	0.1 mbar (H) 10 mbar (L)	20 hp · 15 kW	EN FR
STROV-1000	600 m³/h 353 cfm	about 22,200	500 m³/h	0.1 mbar (H) 10 mbar (L)	20 hp · 15 kW	EN FR
STROV-1200	780 m³/h 459 cfm	about 28,800	660 m³/h	0.1 mbar (H) 10 mbar (L)	25 hp · 18.5 kW	EN FR

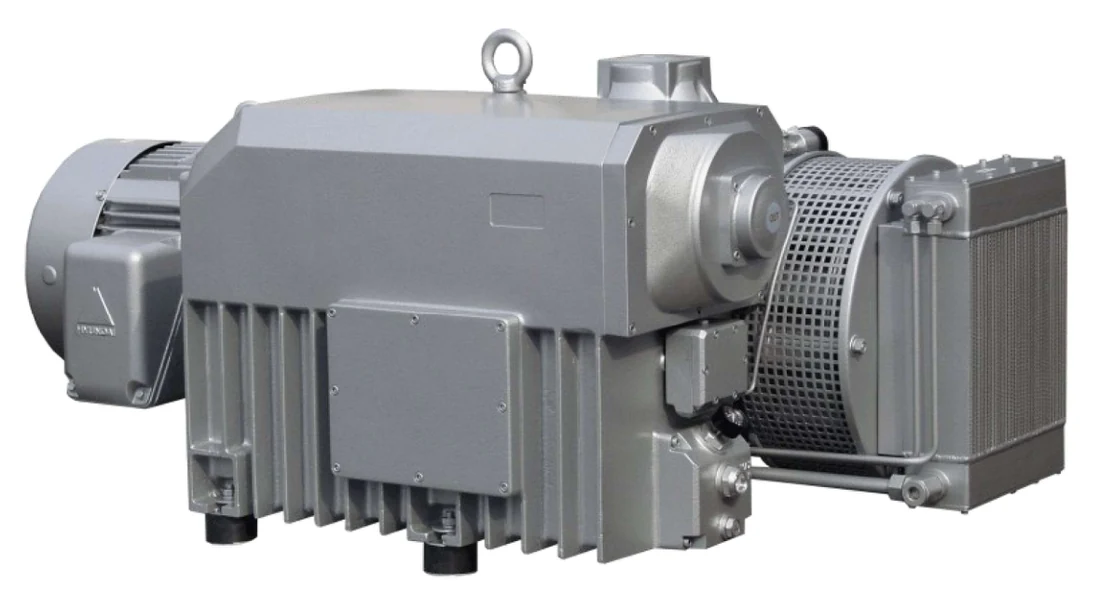

STROV-1500

Model	Pumping speed, 60 Hz	Taps it can hold	50 Hz	End vacuum	Motor, 60 Hz	Datasheet
STROV-1500	—	On request	750 m³/h	0.5 mbar (H) 10 mbar (L)	18.5 kW (50 Hz)	EN FR

Pumping speed is the displacement of the pump. End vacuum is absolute pressure. Oil is not included in the weights on the datasheets. Single-phase motors are available on the smaller models. The number of taps is an indicative figure for a tight tubing system at 60 Hz, about 37 taps per m³/h of pumping speed, in line with the capacities CDL publishes for pumps of similar size. The real number depends on leaks, the length of the lines and the vacuum you want to hold; ask us to size your system.

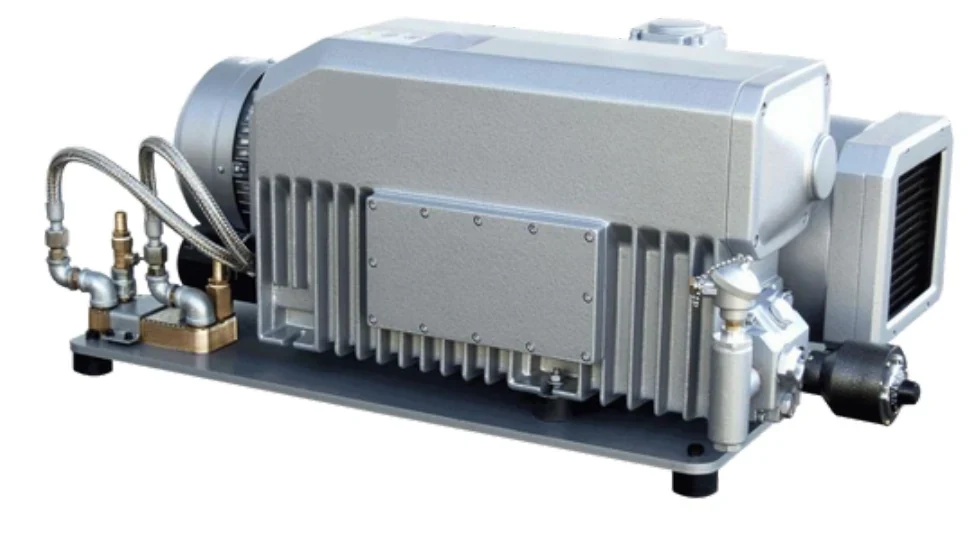

Our advantage: the oil heater

Water in the oil is what kills maple pumps

During the season the pump is often stopped, and water stays in the oil. The mix can corrupt the oil and, in time, damage the pump.

Our thermostat-controlled oil heater keeps the oil warm enough for the water to evaporate. The oil stays in good condition and the pump keeps a better vacuum, season after season.

Available on the STROV-0060 to 1200 models. An oil level switch is required for safety.

STROV-0060 to 02000.5 or 1 kW
STROV-0320 to 06051 or 1.5 kW
STROV-0800 to 12002 or 3 kW

Tell us about your sugar bush

Number of taps, current pump and electrical supply: we come back with a quote.

Request a maple quote

AirTech Vacuum and CDL are trademarks or names of their owners. Stratovac is not affiliated with them.

From operating point to delivered unit

You talk to the engineers who design the machine, from the first question to the drawing approval.

Understand
We review your gas, pressures, flow, duty cycle and the space available.
Specify
We size the machine and agree with you on materials, motor and connections.
Design
Our engineers design around your skid and share drawings for approval.
Validate
Pressure parts and performance are tested before shipment.
Deliver
Units ship from our production sites in Fort Lauderdale, Florida and Barcelona, Spain.

Datasheets and documents

The documents below are in English. The blower range datasheets further down are available in English and French.

High-pressure natural gas booster
Datasheet, August 2026
Open PDF0.9 MB
Biogas regenerative blower
Datasheet
Open PDF0.7 MB
Electric high-pressure air booster IDSC-2SHP-166-400
Product datasheet
Open PDF1.0 MB
Electric booster vs. piston boosters
Comparison sheet
Open PDF0.9 MB
Electric booster vs. pneumatic boosters
Comparison sheet
Open PDF0.9 MB
Pressurized regenerative blower for a natural gas dryer
Case study
Open PDF1.0 MB
High-speed regenerative blower IDMB0092-2SA281
Datasheet with performance curves and dimensions
Open PDF1.3 MB
STRT high-speed turbo blower
Datasheet with performance curves, dimensions and specifications
Open PDF1.8 MB
Double-stage regenerative blower IDSC0530-2SB152-5
Datasheet with vacuum and pressure curves
Open PDF0.6 MB
Standard regenerative blower catalog, IDSC and IDSC1 series
Catalog, 14 pages, with technical tables at 50 and 60 Hz
Open PDF4.2 MB

Blower range datasheets

One datasheet per model, with performance curves, motor data and dimensions. Download the English or French version.

STRP High performance blowers

STRP0045-1MSingle stageEN FR
STRP0065-1MSingle stageEN FR
STRP0085-1MSingle stageEN FR
STRP0120-1MSingle stageEN FR
STRP0165-1MSingle stageEN FR
STRP0045-2SDouble stageEN FR
STRP0065-2SDouble stageEN FR
STRP0085-2SDouble stageEN FR
STRP0120-2SDouble stageEN FR
STRP0165-2SDouble stageEN FR
STRP0120-3STriple stageEN FR
STRP0165-3STriple stageEN FR

Send us your operating point

Give us the gas, the pressures, the flow and the duty cycle. We come back with a sized proposal.

Email
abruens@stratovac.ca
Phone
+1 438-880-4655
Production sites
Fort Lauderdale, FL, USA · Barcelona, Spain
Group
id-industries.com

Quote request

Fill in what you know and send it. We reply by email.

Boosters and blowers for the gases catalogs skip.

Product lines

High-pressure natural gas booster

Biogas regenerative blower

Electric high-pressure air booster

Custom pressurized regenerative blowers

High-speed regenerative blower

High-speed turbo blower

Standard regenerative blowers

Fewer parts to leak, wear or fail

How the magnetic drive seals the gas

The electric booster, whole machine

Magnetic coupling

Oil-free gas path

Corrosion resistance

Compact high speed

Staged pressure

Hazardous-area motors

Stack units to build the pressure

The electric booster against the alternatives

Where Stratovac machines run

Biogas and renewable natural gas

Natural gas treatment

Hydrogen and fuel cells

Collaborative robotics

Medical and respiratory

Dental equipment

Nuclear and radioactive gas

Aquaculture

Compressed air and nitrogen

Vacuum pumps for maple producers

Direct from Stratovac

The same quality as AirTech Vacuum

Made in South Korea

Very competitive prices

Choose your pump

STROV-0020 · 0030 · 0040

STROV-0060 · 0080

STROV-0120 · 0200

STROV-0320 · 0430 · 0505

STROV-0350

STROV-0500 · 0600

STROV-0605

STROV-0800 · 1000 · 1200

STROV-1500

Our advantage: the oil heater

Water in the oil is what kills maple pumps

Tell us about your sugar bush

From operating point to delivered unit

Understand

Specify

Design

Validate

Deliver

Datasheets and documents

High-pressure natural gas booster

Biogas regenerative blower

Electric high-pressure air booster IDSC-2SHP-166-400

Electric booster vs. piston boosters

Electric booster vs. pneumatic boosters

Pressurized regenerative blower for a natural gas dryer

High-speed regenerative blower IDMB0092-2SA281

STRT high-speed turbo blower

Double-stage regenerative blower IDSC0530-2SB152-5

Standard regenerative blower catalog, IDSC and IDSC1 series

Blower range datasheets

STRC Side channel blowers

STRP High performance blowers

Send us your operating point

Quote request

Send it by email instead
